Plastic Bar Chair Circular Clip-On

Overview

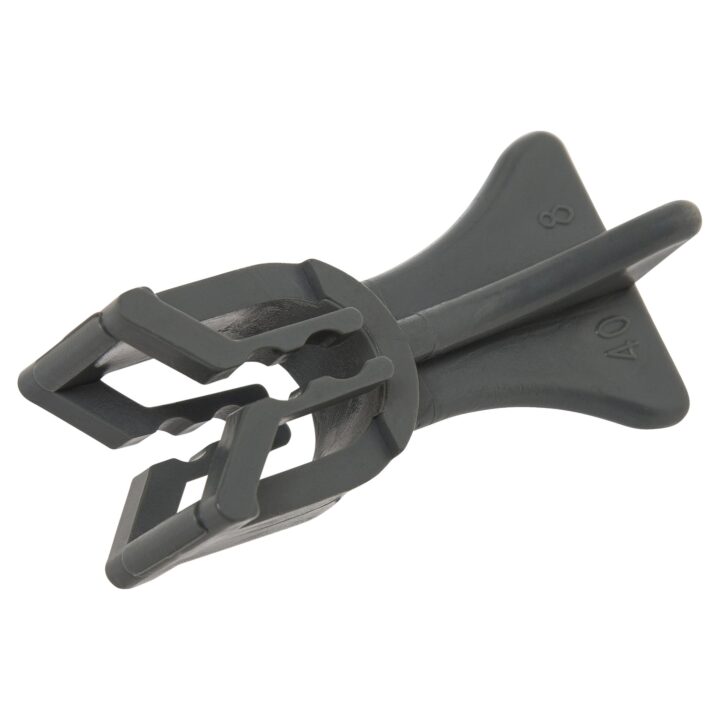

Plastic Bar Chair Circular Clip-On

Circular clip-on plastic bar chairs supplied by InfraBuild Reinforcing are easy to use for a range of civil and commercial projects. Circular clip-on bar chairs from InfraBuild Reinforcing provide constant cover and are available in a wide range of sizes to suit different bar sizes. Circular clip-on chairs are stable from twisting and suit bar sizes ranging from 4–16mm up to 12–20mm.

Typical Uses

  • Columns and piers, vertical concrete elements and commercial construction

Features

  • Easy clip-on
  • Wide range to suit different bar sizes

Relevant Standards

  • AS/NZS 2425 – Bar chairs in reinforced concrete – Product requirements and test methods

To find out more about the circular clip-on plastic bar chairs stocked at your local InfraBuild Reinforcing please contact your nearest bar shop.

Specifications
Product Code Concrete Cover (mm) Suit Bar Size (mm) No./Bag
CPC15 15 4 – 16 100
CPC20 20 4 – 16 100
CPC206 20 6 100
CPC25 25 4 – 16 100
CPC25A 25 12 – 20 100
CPC30 30 4 – 16 100
CPC30A 30 12 – 20 100
CPC40 40 4 – 16 100
CPC40A 40 12 – 20 100
CPC50 50 8 – 12 100
CPC50A 50 12 – 20 100
CPC60 60 8 – 12 100
CPC60A 60 12 – 20 100
CPC65 65 8 – 12 100
CPC75 75 8 – 12 100
CPC75A 75 12 – 20 100
