Fabricated Z Cages – Class N Bar

Overview

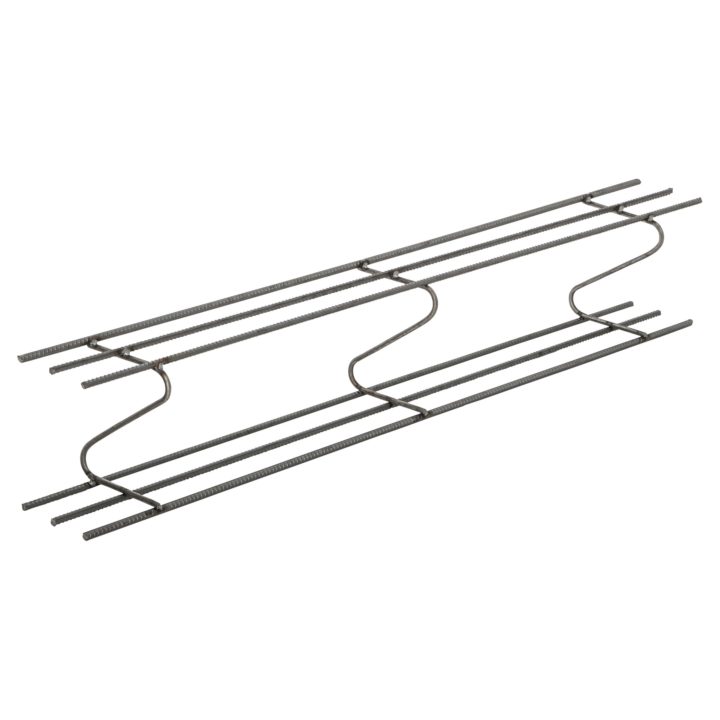

Fabricated Z Cages – Class N Bar

Fabricated Z cages supplied by InfraBuild Reinforcing increase the speed of installation for various footing applications. Available in Class N bar, fabricated Z cages are available in heights from 200 – 500 mm for bar cages.

Typical Uses

  • Z-Cages provide reinforcing for various concrete strip footing applications

Features

  • Increase the speed of installation for various footing applications

Relevant Standards

  • AS/NZS 4671 Steel for the reinforcement of concrete
  • AS 2870 Residential slabs and footings construction

To find out more about the range of fabricated Z cage stocked at your local InfraBuild Reinforcing please contact your nearest bar shop.

Specifications
Product Code No. of Bars Height (mm) Width (mm)
ZC4Y 4 x N12 200 200
ZC12435 4 x N12 350 150
ZC9Y 6 x N12 300 200
ZC10Y 6 x N12 400 200
ZC12635 6 x N12 350 150
ZC11Y 6 x N12 500 200
ZC16Y 6 x N16 500 200
